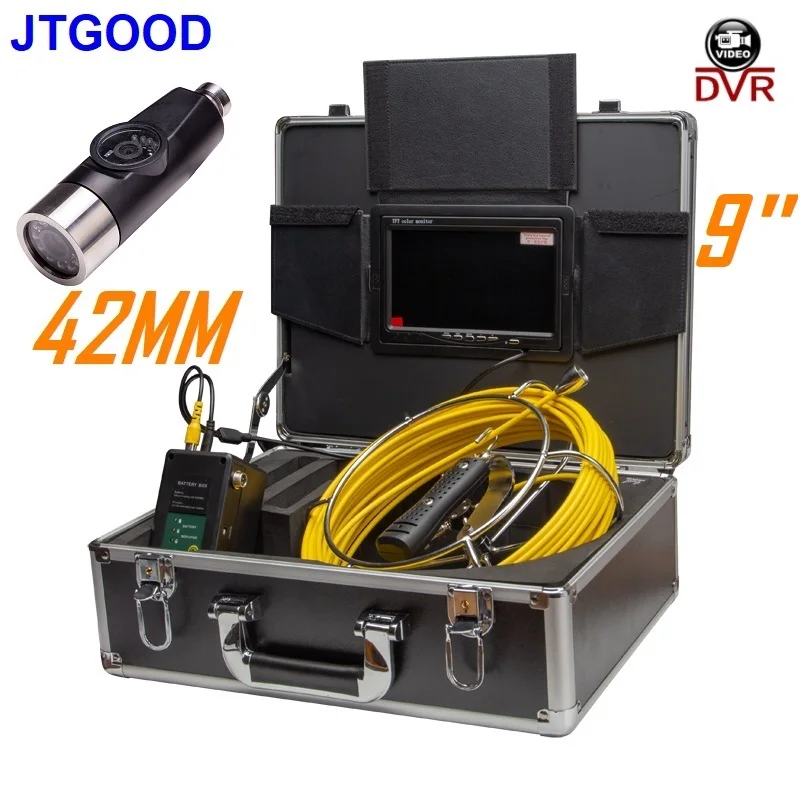

JTGOOD 9" Monitor DVR WiFi 1080P 42MM Dual Lens Pipe Inspection Video Camera IP68 Drain Sewer Pipeline Industrial Endoscope Cameras
Our manufacture pipe inspection video camera system with different functions for chosing.
Below is functions descriptions.
1.DVR function. With DVR Recording function.Pipeline Wall Sewer Inspection Snake Camera built-in SD Card slot,8GB TF cardincluded,it is avialiable to view live video and save video clips and photos.You can record the inspections and playbackon PC with card reader.
2.WiFi function. The Pipe Inspection Camera built-in 2.4G WiFi,it can be operated by the free app(Android ,IOS and tablet pc),support max to 3 devices viewing simultaneously,very simple and convenient to use. The inspections can be playback by your phone.
3.1080P function. The Pipe Inspection Camera and Monitor built-in HD 1080P.When you play back the DVR video in the computer or phone,it will show HD 1080P effect.Which will help you find the pipes problem easier and clearly.

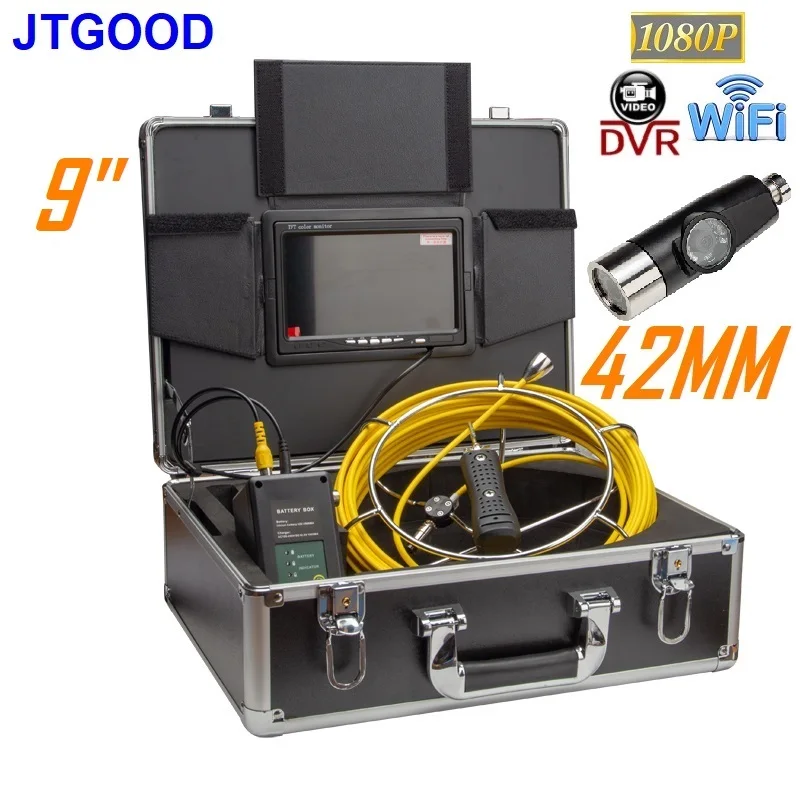

This pipe inspection camera item is 9 Inches monitor and 42MM Dual Lens camera. Which can use for -above 45MM diameter pipe.
With 4 different function configuration models for chosing.
All support 20M/30M/50M(65.5ft/164ft/328ft) cables for optional.If you need other length cables,kindly contact us freely.
1.Standard Function Model:
This is with standard function.
2.DVR Function Model:
This is with DVR function.8GB TF Card included. Pipeline Wall Sewer Inspection Snake Camera built-in SD Card slot,it is avialiable to view live video and save video clips and photos.You can record the inspections and playback on PC with card reader.

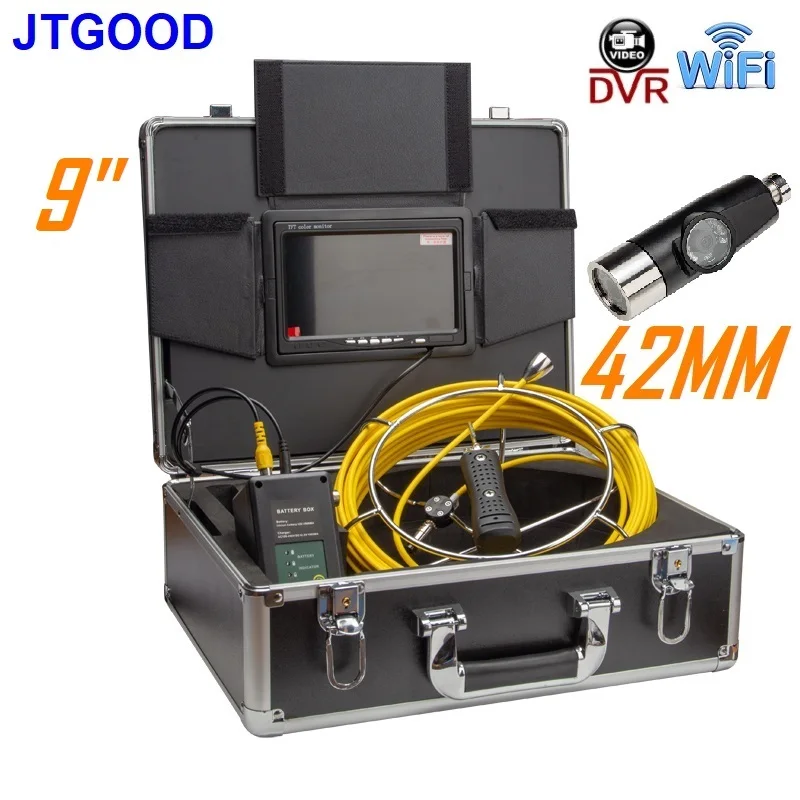

3.WiFi and DVR Function Model:
This is with DVR and WiFi function.8GB TF Card included. The Pipe Inspection Camera built-in 2.4G WiFi.It can be operated by our free app(Android ,IOS and tablet pc),support max to 3 devices viewing simultaneously,very simple and convenient to use. The inspections can be playback by your phone.
4.1080P WiFi and DVR Function Model:
This is with DVR WiFi and 1080P function.8GB TF Card included. The Pipe Inspection Camera built-in 2.4G WiFi and 1080P.And with 1080P Monitor.When you play back the DVR video in the computer or phone,it will show HD 1080P effect.Which will help you find the pipes problem easier and clearly.
Description

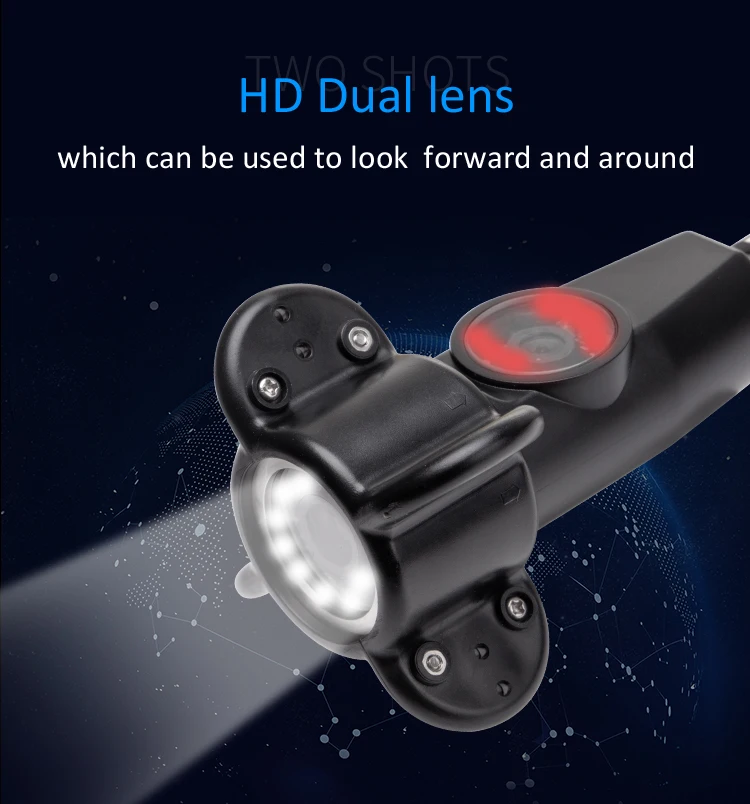

1.Dual lens(camera with two lenses), which can be used to look forward and around.

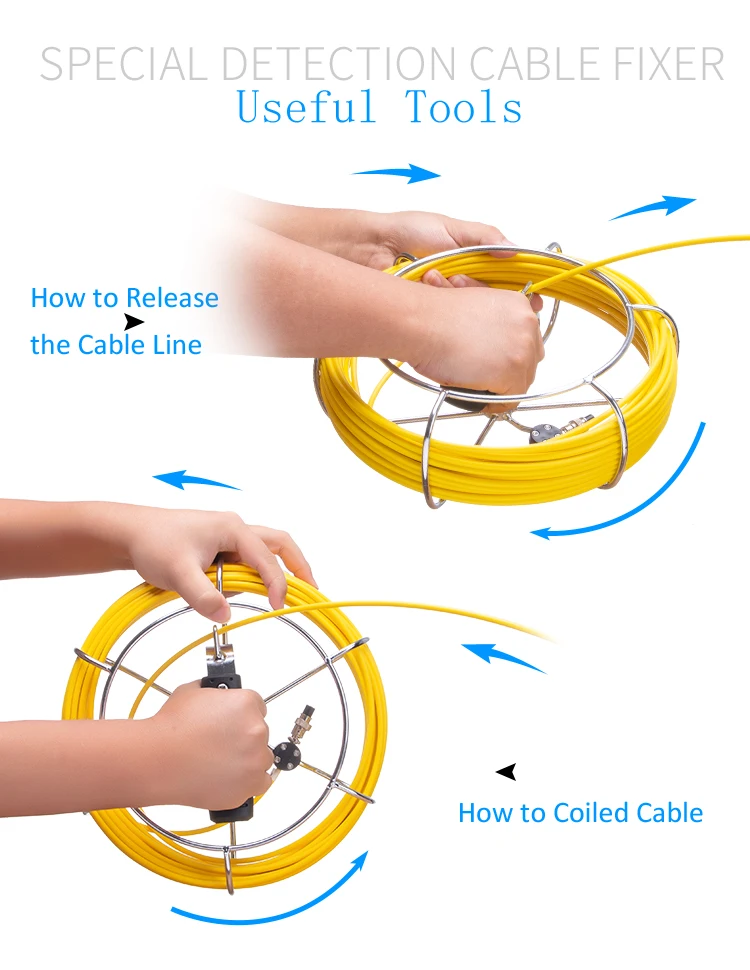

2.Cable length scale: the scaled cable can show the cable length.
3.The camera diameter is 42mm,it is suitable for the pipe which size is large than 42mm.

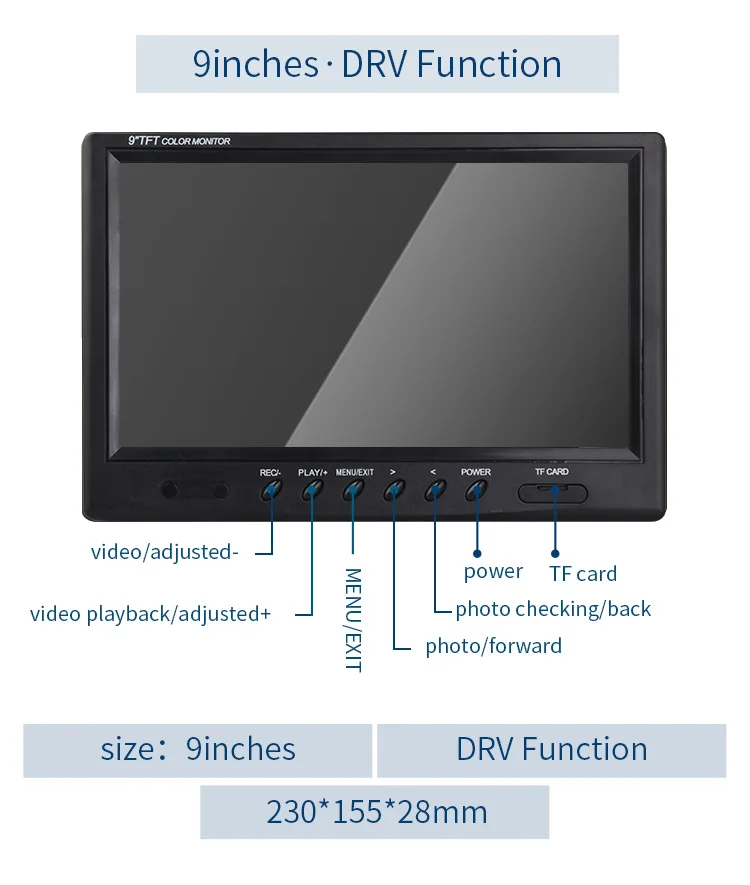

4.Color TFT LCD Screen.
5.high resolution camera,clear picture.

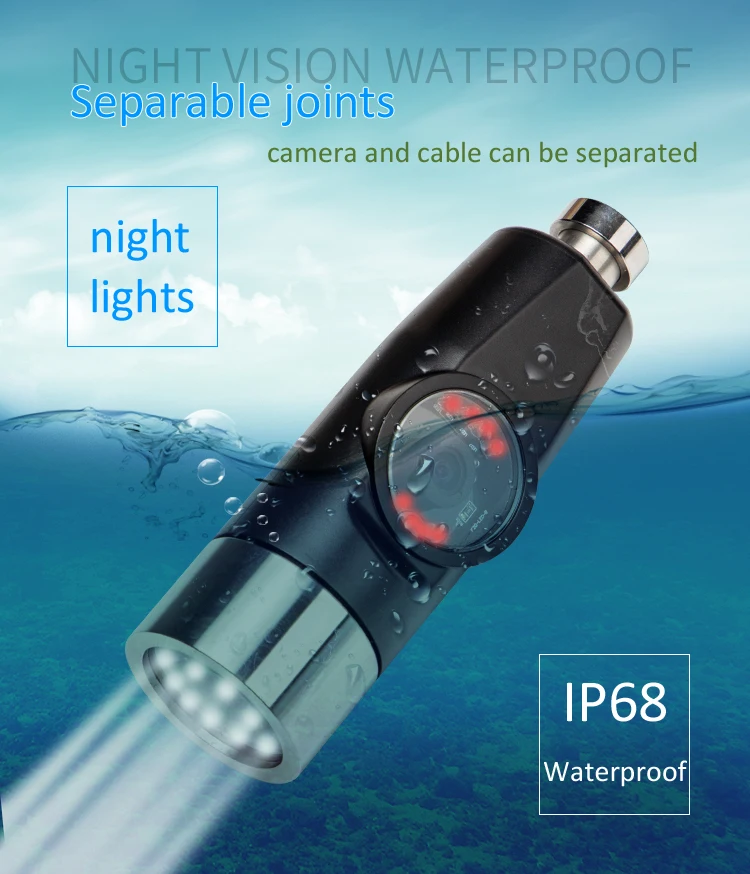

6.Highlight night vision lights£¬wonderful night vision.
7.Deeply waterproof function: professional sealed waterproofing process; waterproof grade: IP68
8.High quality special cable, waterproof and anti-corrosion/cold/tensile.

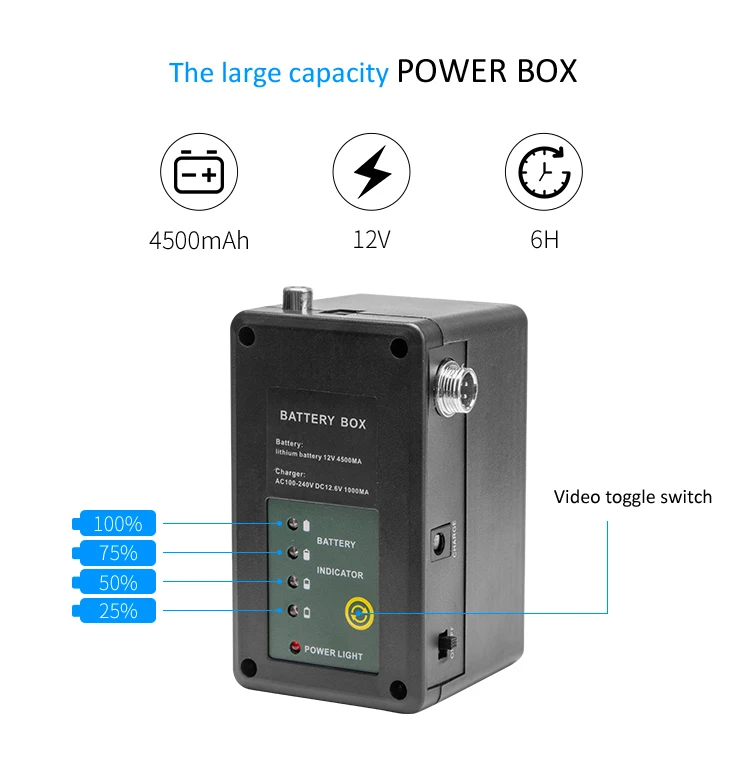

9.12V4500MA lithium battery.With battery capacity showing function: u can get the detail battery capacity when using.
10.Leather sunshade with magnets,with sun-visor for bright environment outside.
Product Specification
Camera diameter:42MM
With the tube diameter:>45MM
Camera light source:LED with high while light
Camera working voltage:12V
Lights working voltage:12V
Waterproof:IP68

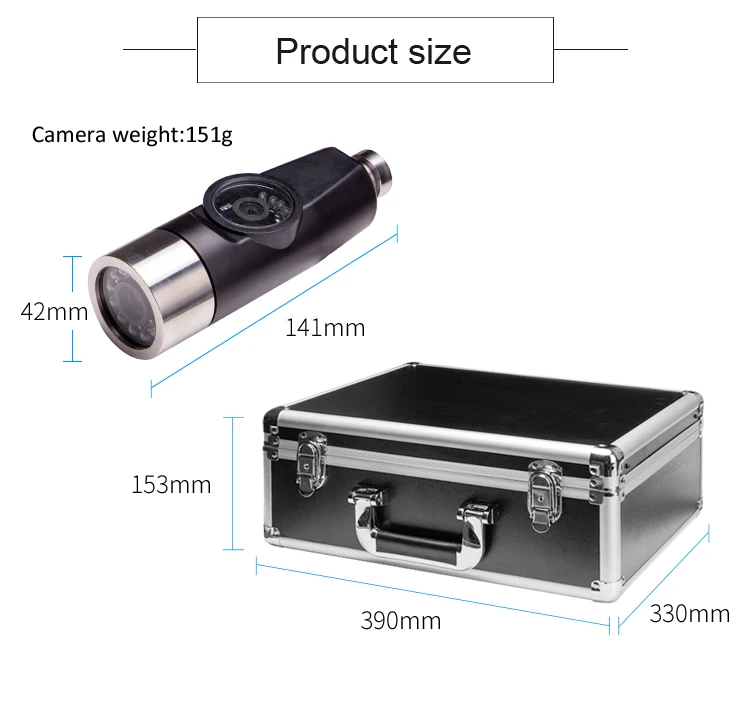

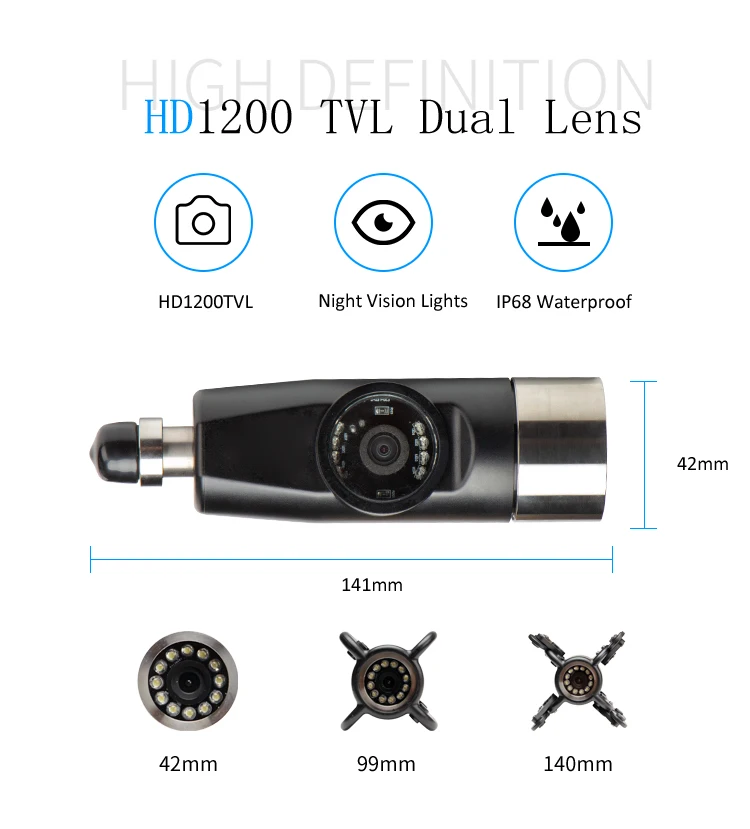

Camera size:136MM*42MM
Camera protective cover parts size 1:41MM*99MM
Camera protective cover parts size 1:54MM*140MM
Charger:AC100-240V DC12.6V
Battery:lithium battery 12V4500MA
Continuous use time for battery:approximate 6h
Investigation depth:20M( selectable line length)
Material:fiber tube with /high intensity
Menu languages:multi-language
Camera picture:color
Operating temperature:-20-60¡ã
Storage temperature:-30-70¡ã
Aluminium box size:390*320*150mm
Package size:410*360*160mm
Switchboard net weight:5KG
Packaging machine weight:5.5KG |
