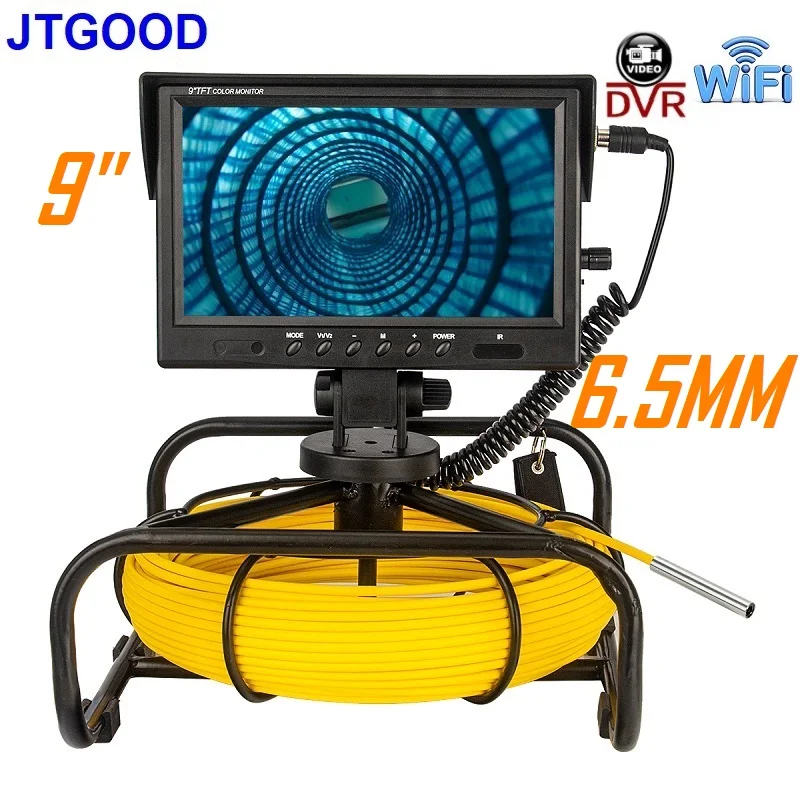

Pipe Inspection Camera 6.5MM with DVR 16GB FT Card WiFi Andorid IOS HD1080P Pipe Inspection System 20M/30M/50M Endoscope Camera
Our manufacture pipe inspection video camera system with different functions for chosing.
Below is functions descriptions.
1.DVR function. With DVR Recording function.Pipeline Wall Sewer Inspection Snake Camera built-in SD Card slot,16GB TF cardincluded,it is avialiable to view live video and save video clips and photos.You can record the inspections and playbackon PC with card reader.
2.WiFi function. The Pipe Inspection Camera built-in 2.4G WiFi,it can be operated by the free app(Android ,IOS and tablet pc),support max to 3 devices viewing simultaneously,very simple and convenient to use. The inspections can be playback by your phone.
3.1080P function. The Pipe Inspection Camera and Monitor built-in HD 1080P.When you play back the DVR video in the computer or phone,it will show HD 1080P effect.Which will help you find the pipes problem easier and clearly.

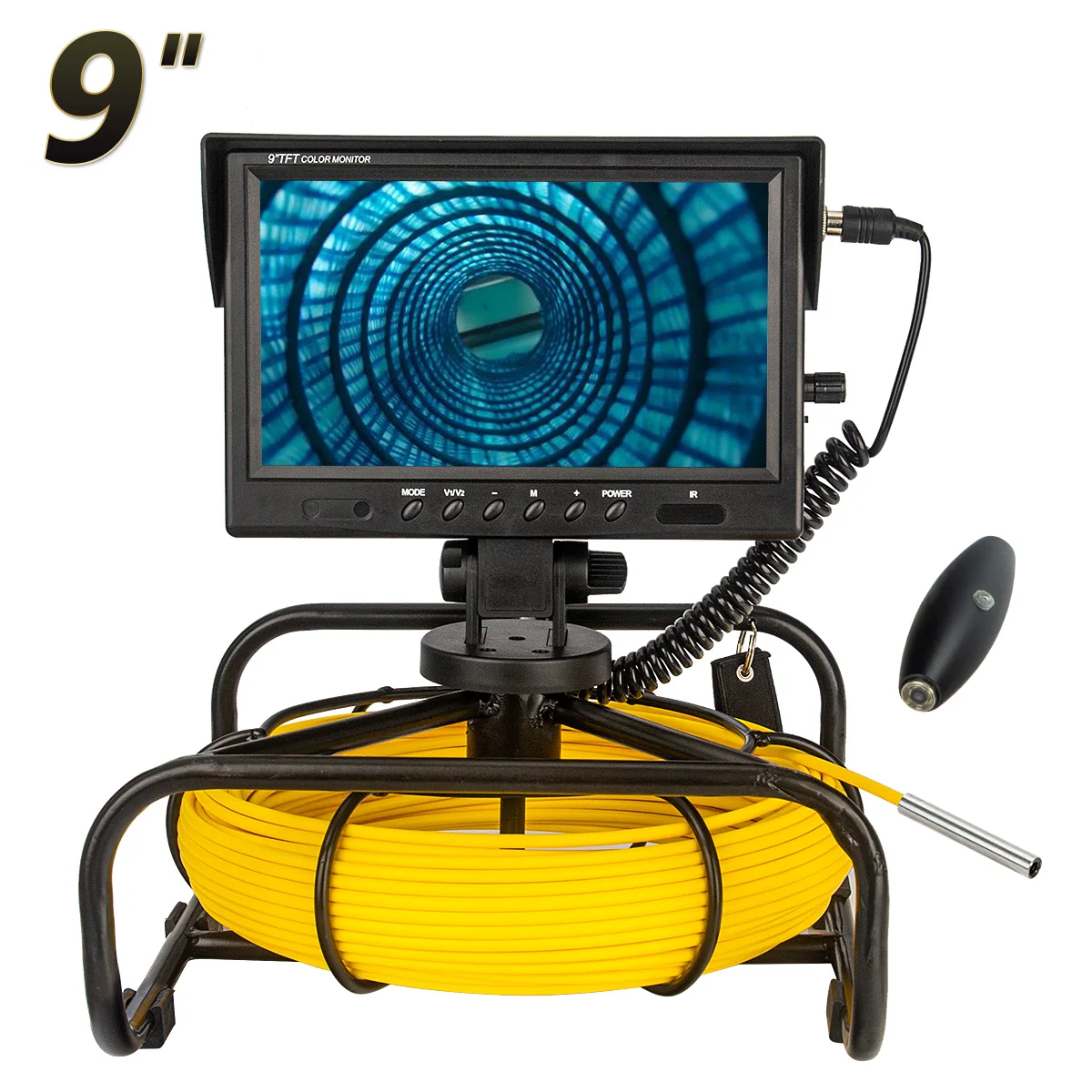

This pipe inspection camera item is 9 Inches monitor and 6.5MM camera. Which can use for 7-30MM diameter pipe. This Item with 4 different function configuration models for chosing.
All support 20M/30M/50M(65.5ft/164ft/328ft) cables for optional.If you need other length cables,kindly contact us freely.
1.Standard Function Model:
JTGOOD 9 Inches 20/30/50M 6.5MM DVR Pipe Inspection Camera This is with Standard Function.No DVR WiFi 1080P functions.
2.DVR Function Model:
JTGOOD 9 Inches 20/30/50M 6.5MM DVR Pipe Inspection Camera This is with DVR function.16GB TF Card included. Pipeline Wall Sewer Inspection Snake Camera built-in SD Card slot,it is avialiable to view live video and save video clips and photos.You can record the inspections and playback on PC with card reader.
3.WiFi and DVR Function Model:
This is with DVR and WiFi function.16GB TF Card included. The Pipe Inspection Camera built-in 2.4G WiFi.It can be operated by our free app(Android ,IOS and tablet pc),support max to 3 devices viewing simultaneously,very simple and convenient to use. The inspections can be playback by your phone.

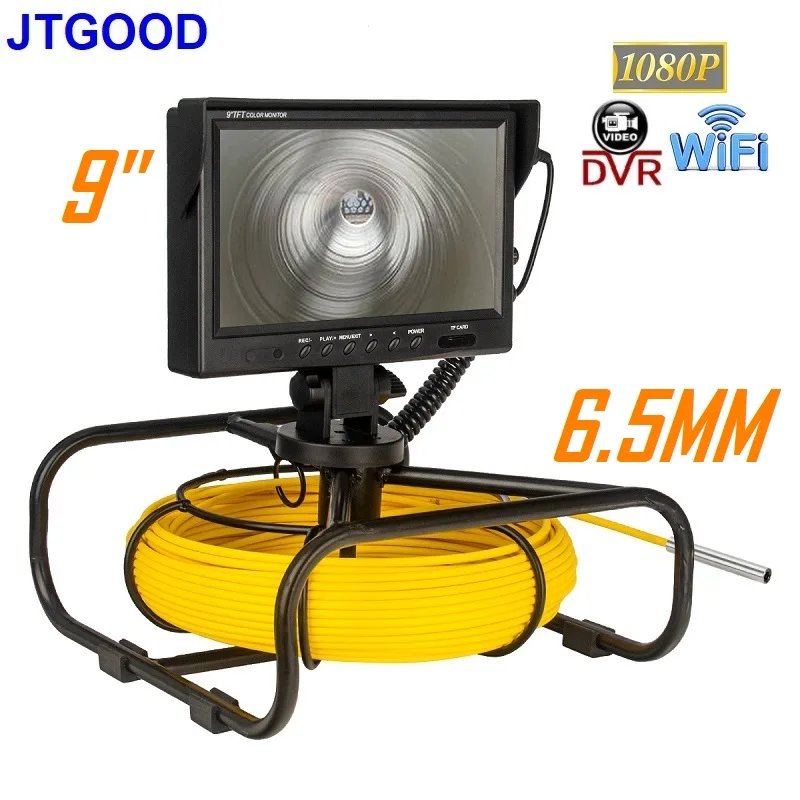

4.1080P WiFi and DVR Function Model:
This is with DVR WiFi and 1080P function.8GB TF Card included. The Pipe Inspection Camera built-in 2.4G WiFi and 1080P.And with 1080P Monitor.When you play back the DVR video in the computer or phone,it will show HD 1080P effect.Which will help you find the pipes problem easier and clearly.
Description
1.Cable length scale: the scaled cable can show the cable length.
2.Use it with mini-video camera with the tube diameter as 7MM£30MM.

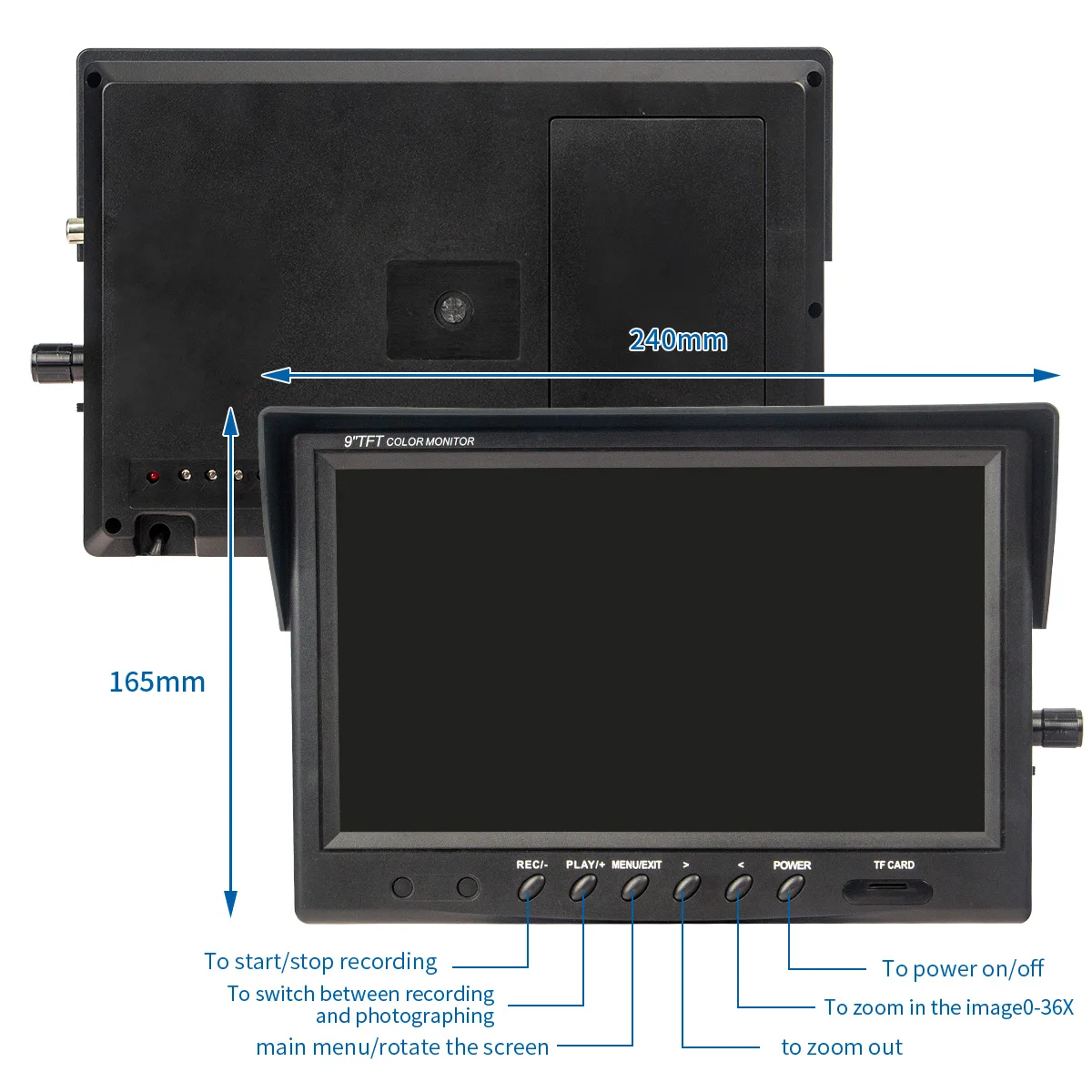

3. 9 inch color TFT LCD Screen.HD1080P Screen for 1080P Model
4.Stainless steel housing camera: strong, durable and easily radiating. Waterproof Level: IP68
5.high resolution camera,clear picture,
6. 6 LED night vision, and the lights can on/off.night lights adjustable.
7.High quality special cable, waterproof and anti-corrosion/cold/tensile.
8.12V4500MA lithium battery.With battery capacity showing function: u can get the detail battery capacity when using.
9.with sun-visor for bright environment outside
10.Range of Application£ºWater-supply pipe¡¢Air-conditioner pipe¡¢Cable pipe¡¢Pipeline vacuum system¡¢PLUNBIN pipe¡¢Buildings¡¢Sunken pipe
Product Specification
LCD Screen£º 9 inch color TFT
Camera 1200TVL/1080P
Cable diameter 5MM
Camera diameter: 6.5MM
With the tube diameter: >7MM
Camera light source: 6 LED with high while light(adjustable)
camera viewing angle: 110¡ã
Camera material: Stainless steel
Water proof: IP68
Battery: Lithium battery 12V4500MA
Charger: 100VAC-240VAC DC12.6V 1000MA
Continuous use time for battery: Approximate 6h
Investigation depth: 20M( selectable line length)
Camera picture: Color
Camera working voltage: 5V
Lights working voltage: 12V DC
Camera size: 45MM* 6.5MM
Camera protective cover parts size : 45MM* 15MM
Operating temperature: -20-60¡ã
Storage temperature: -30-80¡ã
Package size: 33*31*21CM
Packaging machine weight: 4.6KG
|
