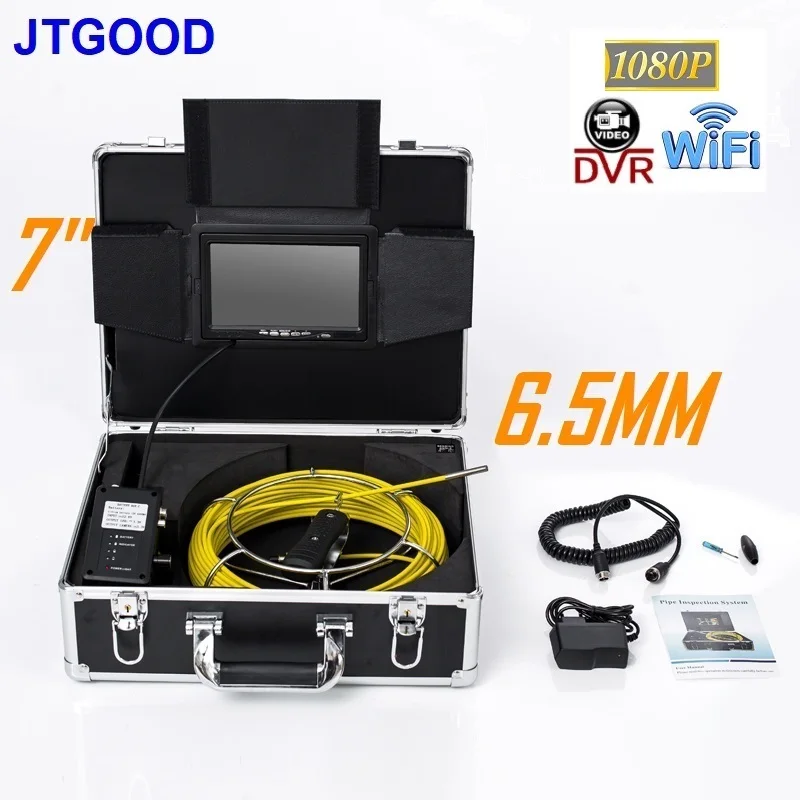

JTGOOD 7" Monitor HD1080P DVR WiFi 6.5mm Pipe Inspection Video Camera IP68 Drain Sewer Pipeline Industrial Endoscope System
Our manufacture pipe inspection video camera system with different functions for chosing.
Below is functions descriptions.

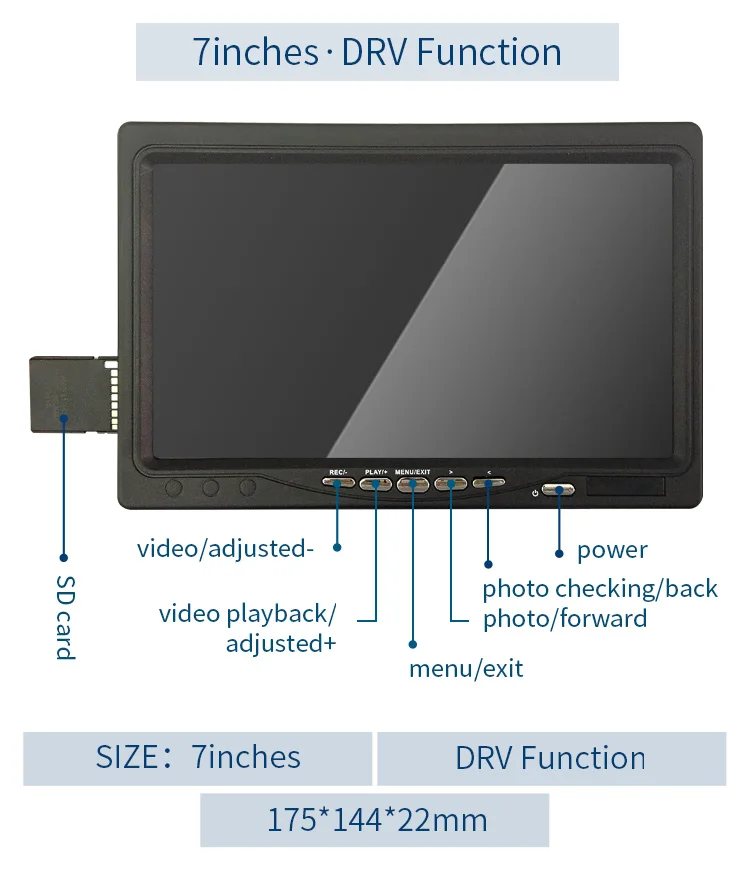

1.DVR function. With DVR Recording function.Pipeline Wall Sewer Inspection Snake Camera built-in SD Card slot,8GB TF cardincluded,it is avialiable to view live video and save video clips and photos.You can record the inspections and playbackon PC with card reader.

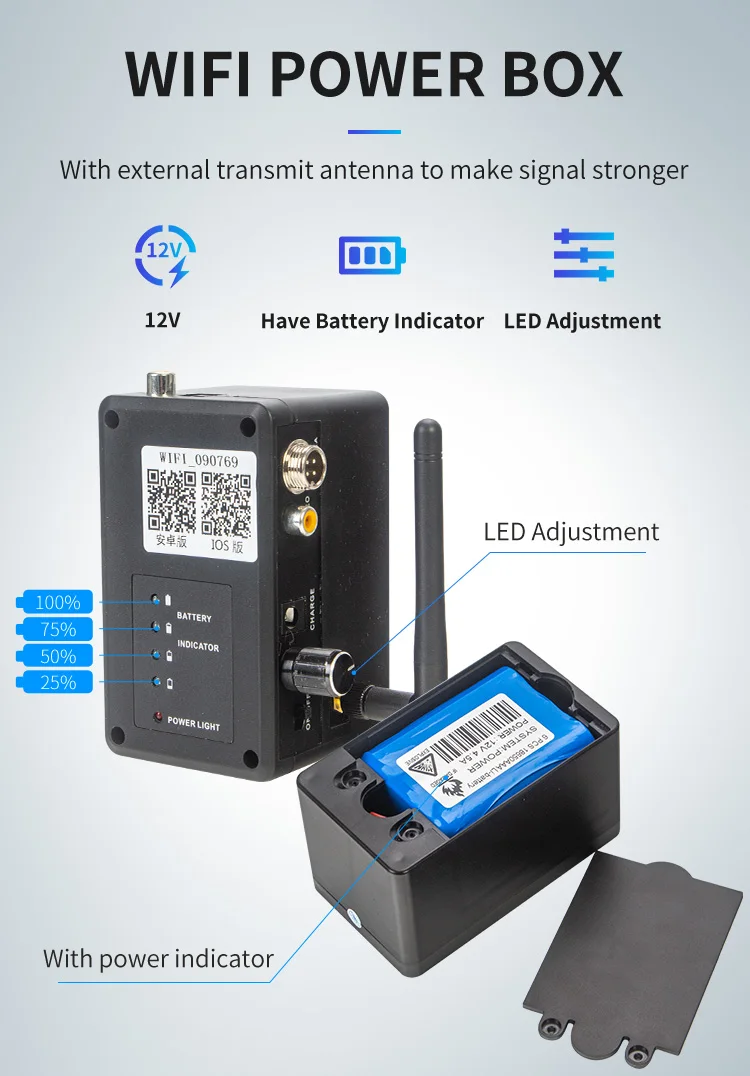

2.WiFi function. The Pipe Inspection Camera built-in 2.4G WiFi,it can be operated by the free app(Android ,IOS and tablet pc),support max to 3 devices viewing simultaneously,very simple and convenient to use. The inspections can be playback by your phone.
3.1080P function. The Pipe Inspection Camera and Monitor built-in HD 1080P.When you play back the DVR video in the computer or phone,it will show HD 1080P effect.Which will help you find the pipes problem easier and clearly.
4.Keyboard function. With keyboard which is easy for worker to mark the words in the monitor.Tap the keyborad button,the characters will be showed on the display.It support typing total 15 lines and each line 28 characters maximum.

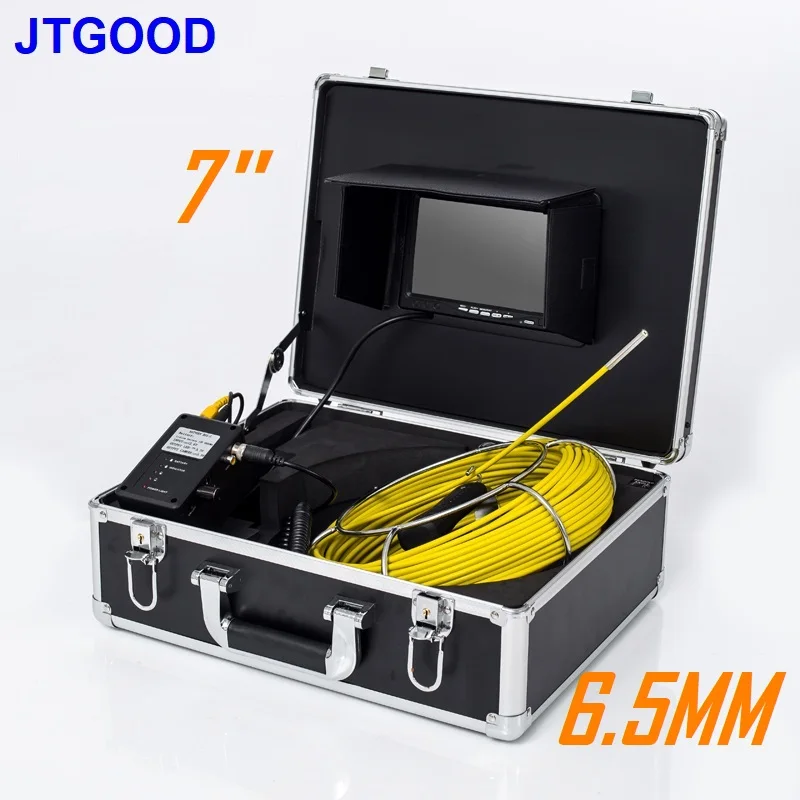

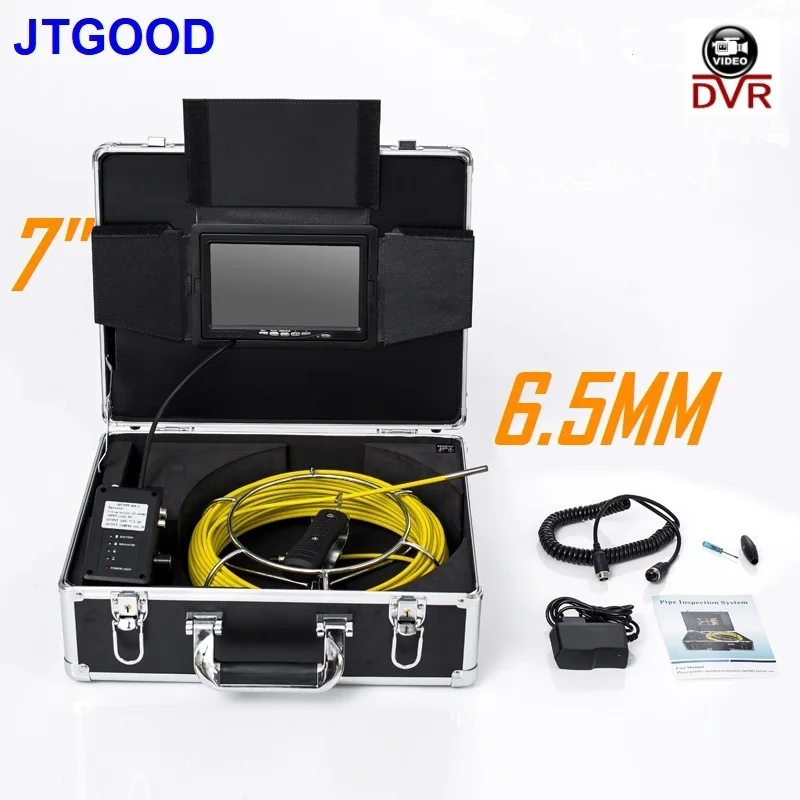

This pipe inspection camera item is 7" monitor and 6.5mm camera. Which can use for 7-30mm diameter pipe. With 5 different configuration models for chosing.

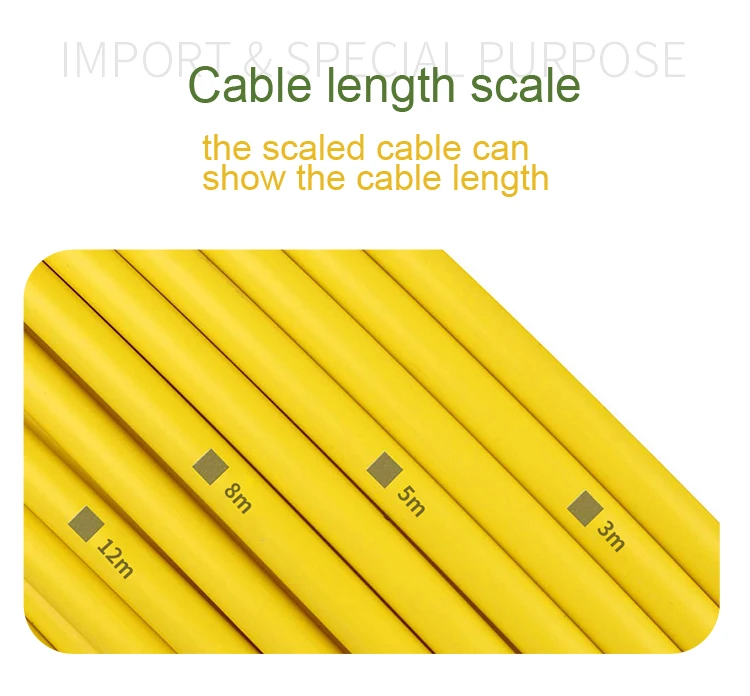

All support 20M/30M/50M(65.5ft/164ft/328ft) cables for optional.
1.Standard Function Model:
This is with standard function.
2.DVR Function Model:
This is with DVR function.8GB TF Card included. Pipeline Wall Sewer Inspection Snake Camera built-in SD Card slot,it is avialiable to view live video and save video clips and photos.You can record the inspections and playback on PC with card reader.

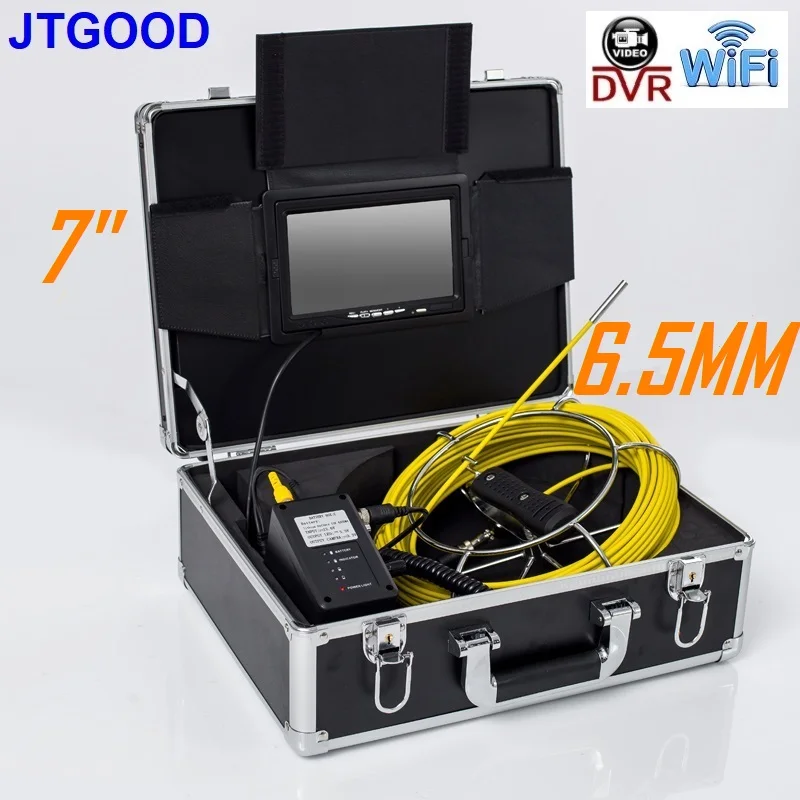

3.WiFi and DVR Function Model:
This is with DVR and WiFi function.8GB TF Card included. The Pipe Inspection Camera built-in 2.4G WiFi.
4.1080P WiFi and DVR Function Model:
This is with DVR WiFi and 1080P function.8GB TF Card included. The Pipe Inspection Camera built-in 2.4G WiFi and 1080P.And with 1080P Monitor.

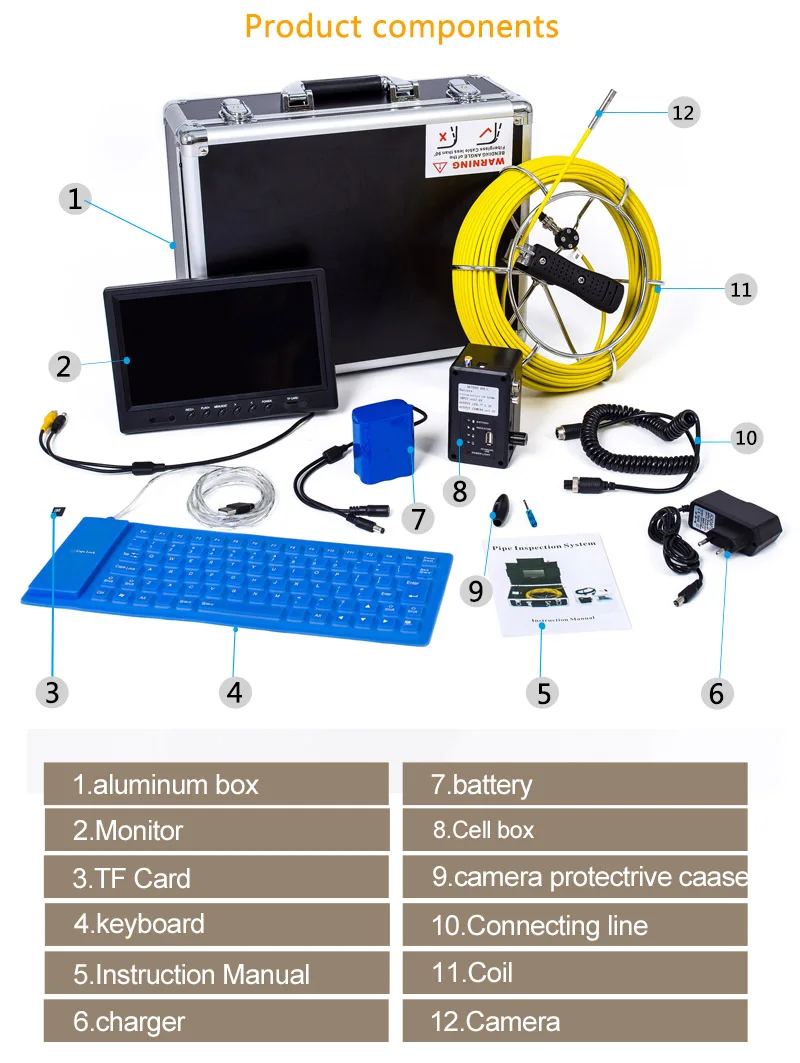

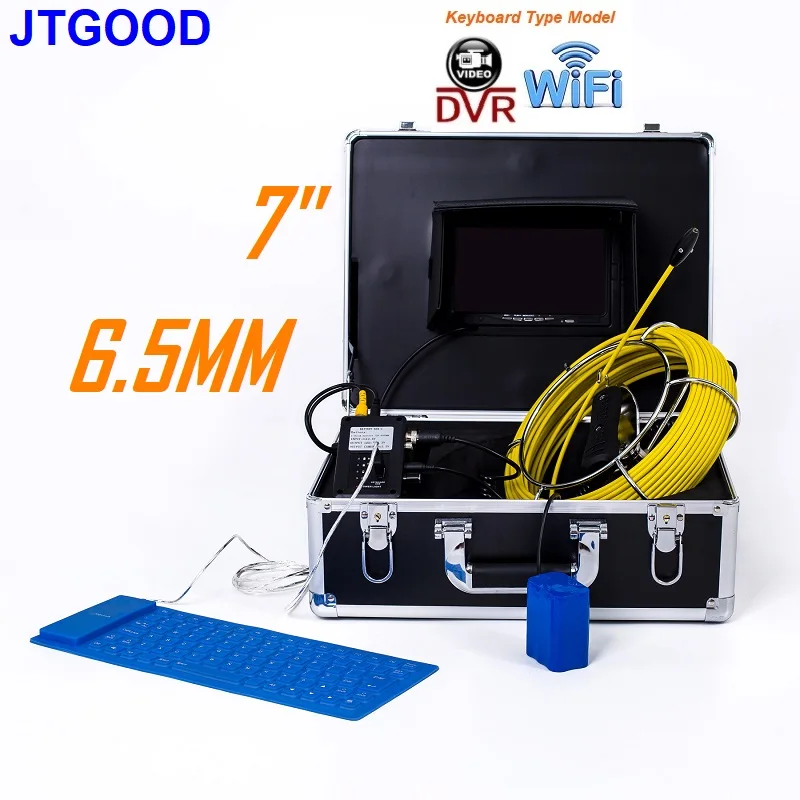

5.Keyboard WiFi and DVR Function Model:
This is with DVR WiFi and Keyboard function.8GB TF Card included. The Pipe Inspection Camera built-in 2.4G WiFi.And with Keyboard Type function.
Description

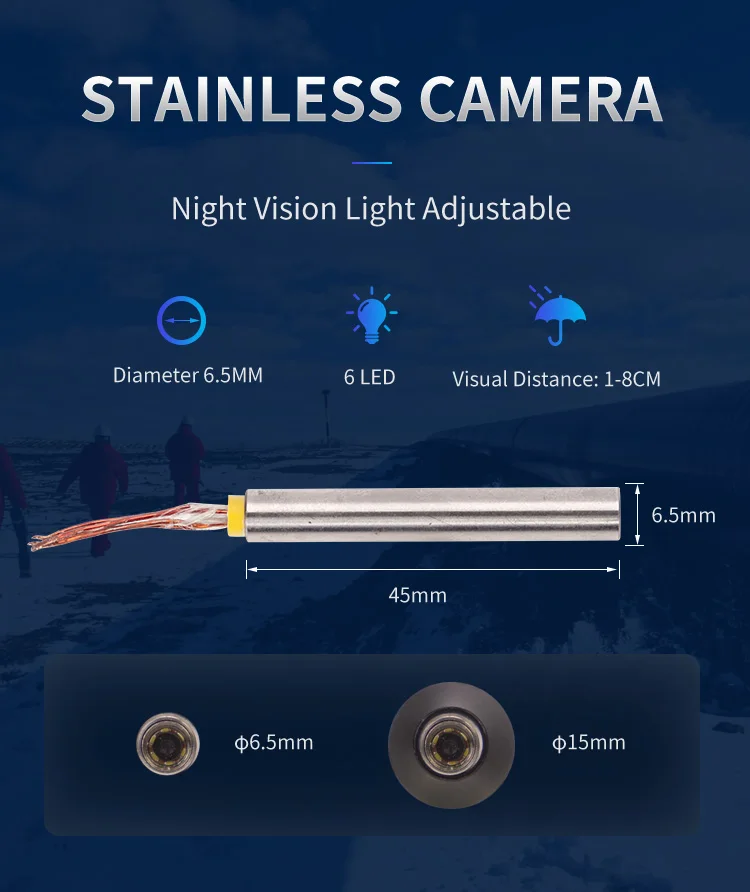

1.Use it with mini-video camera with the tube diameter as 7-30MM.Camera visual distance 1-8CM.
2.with type function for keyboard model.
3. color TFT LCD Screen.1080P model for chosing.
4. Stainless steel housing Metal housing:: strong, durable and easily radiating.
5. high resolution camera,clear picture,1080P model for chosing.
6. night vision, and the lights can on/off.night lights adjustable.

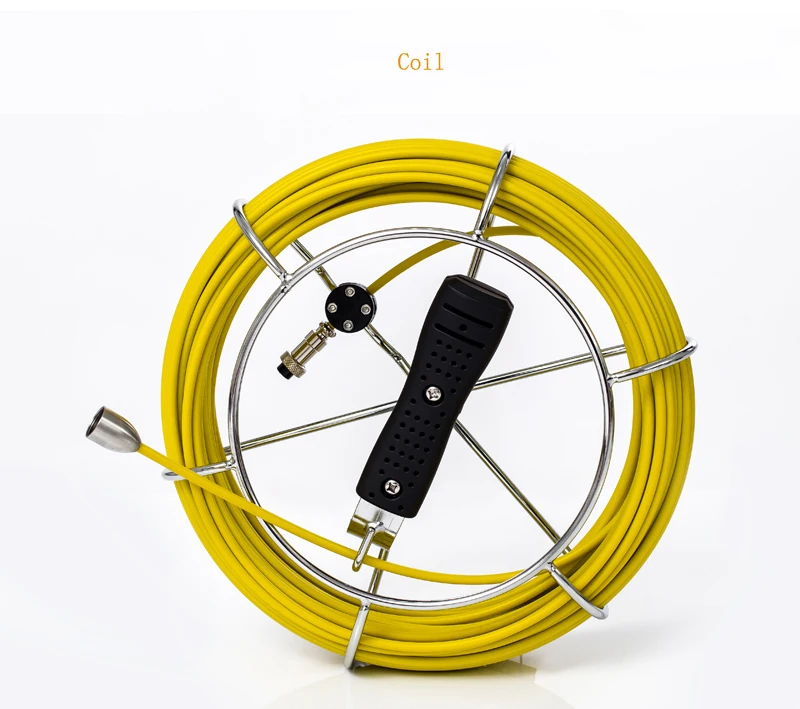

7. High quality special cable, waterproof and anti-corrosion/cold/tensile.
8. 12V4500MA lithium battery.With battery capacity showing function: u can get the detail battery capacity when using.
9 .with sun-visor for bright environment outside

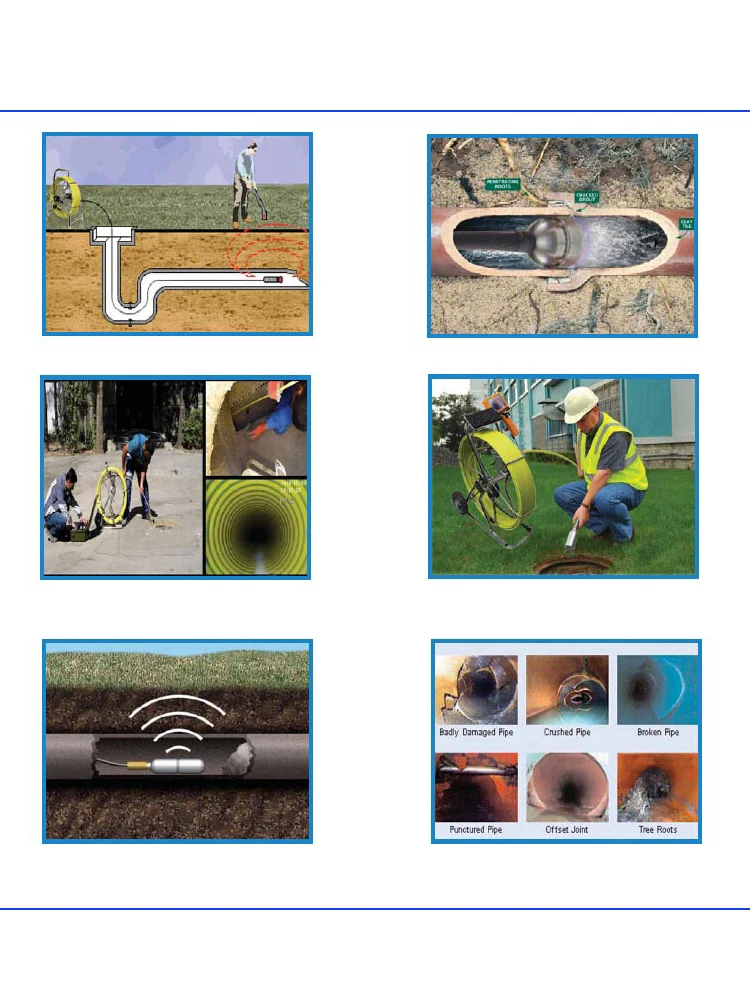

10.Range of Application£ºWater-supply pipe,Air-conditioner pipe,Cable pipe,Pipeline vacuum system,PLUNBIN pipe,Buildings,Sunken pipe
Specification
Charger:AC100-240VDC12.6V1000MA
Battery:lithium battery12V4500MA
Continuous use time for battery:approximate 6h
Investigation depth:20M( selectable line length)
material:fiber tube with /high intensity
camera light source:6 LED with high while light(adjustable)
camera working voltage:5V
lights working voltage:12V

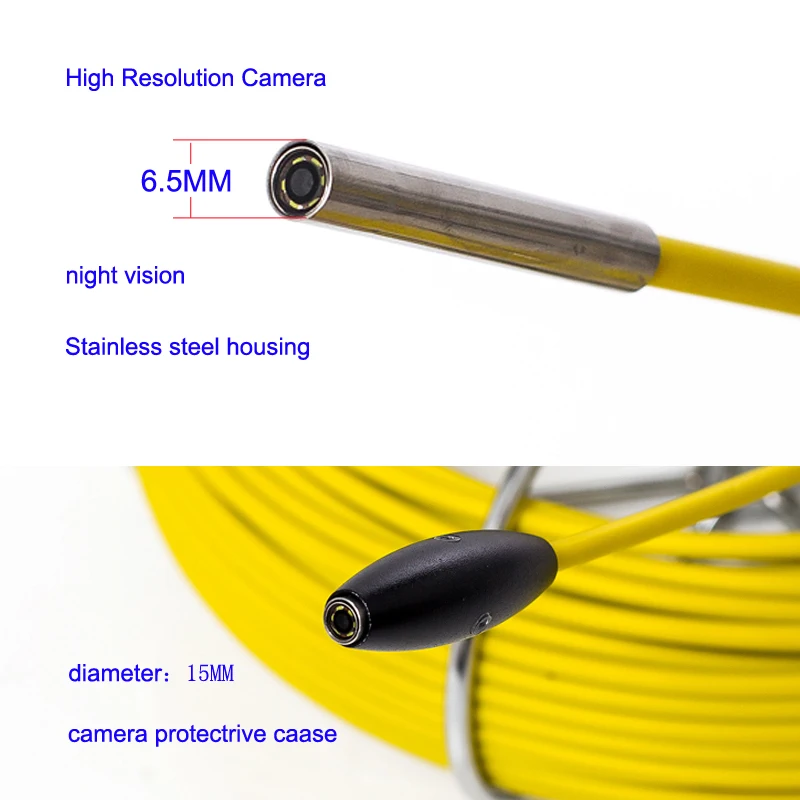

camera material:stainless steel
camera protective cover parts material: metal
Menu languages: multi-language
Camera visual distance:2-20CM(approximate)
camera picture:color
Operating temperature:-20-60¡ã
Storage temperature:-50-60¡ã

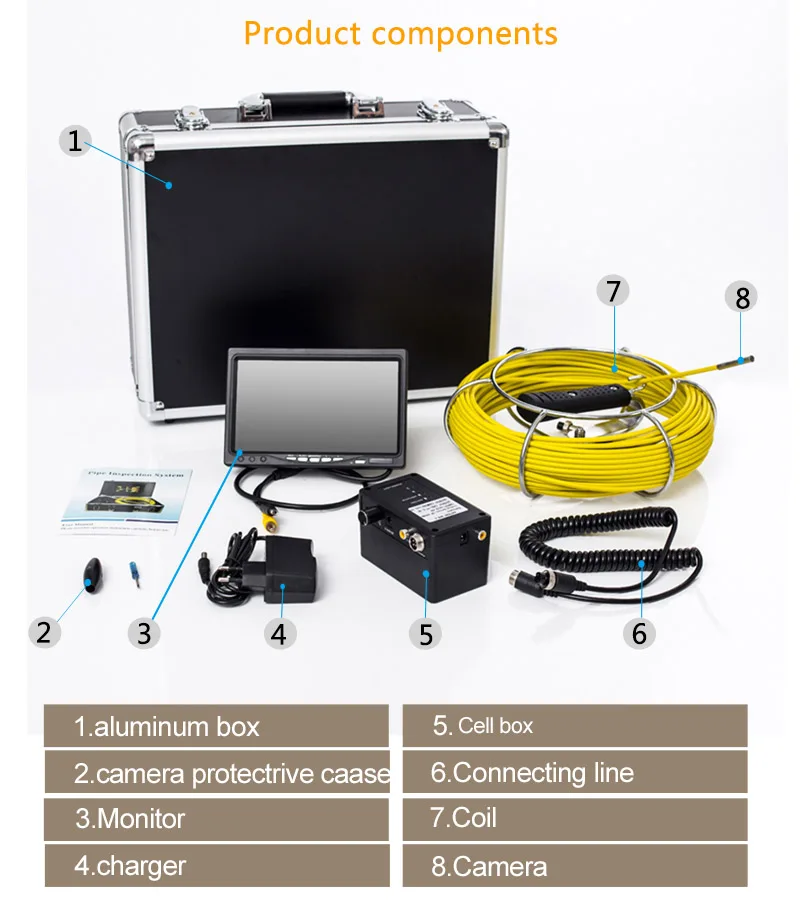

Aluminium box size:390*320*150mm
Package size: 410*360*160mm
Switchboard net weight:4.5KG
Packaging machine weight:5KG
